-Two frequency superior quality ceiling speaker.
--Wide frequency response.
--With iron-made back box that prevents the fire and mouse.
--With self-resetting over-current protection
--Carbon fiber water-proof cone for woofer
- Specifications

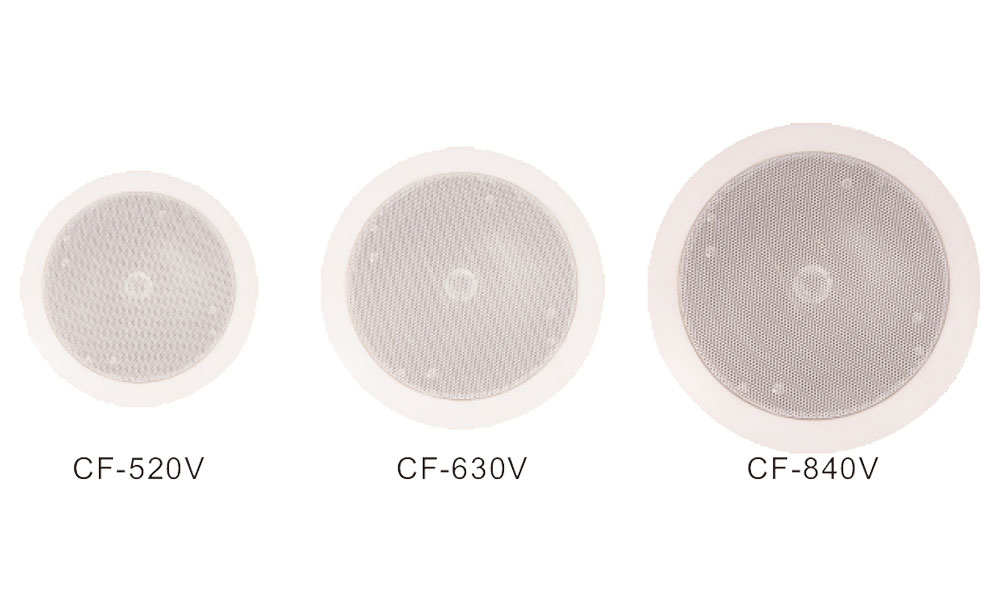

Model | CF-520V | CF-630V | CF-840V |
Rated Power | 20W | 30W | 40W |
Input Model | 70V/100V | 70V/100V | 70V/100V |
Sensitivity | 90dB±2dB | 91dB±2dB | 92dB±2dB |
Frequency Response | 80Hz-18KHz | 70Hz-18KHz | 60Hz-18KHz |
Material | ABS+ Iron Net | ABS+ Iron Net | ABS+ Iron Net |
Speaker Unit | 5” x 1; 1.5”x1 | 6.5” x 1; 1.5” x 1 | 8” x 1; 1.5” x 1 |
Mounting Hole | Φ180-185mm | Φ205-210mm | Φ245-250mm |
Panel Size | Φ212 x 85mm | Φ240 x 95mm | Φ280 x 100mm |
Weight | 1.4kg | 1.94kg | 2.3kg |
